Luminaire 8 Fans Per Control

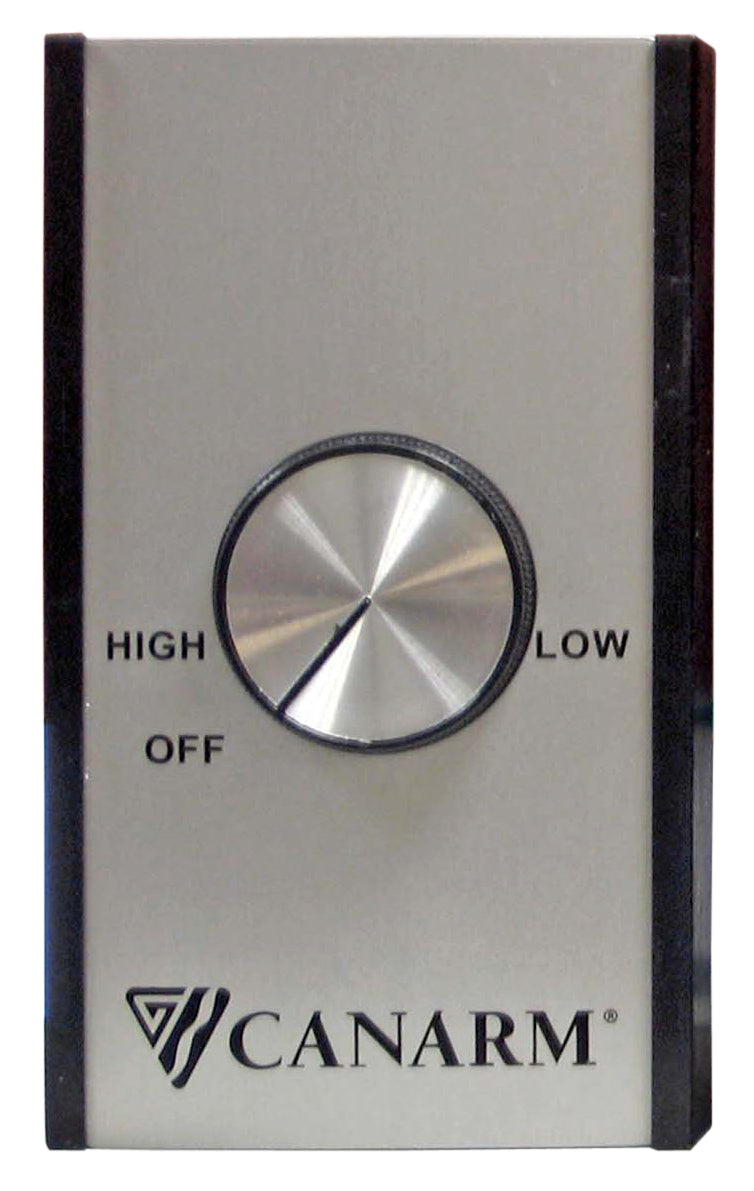

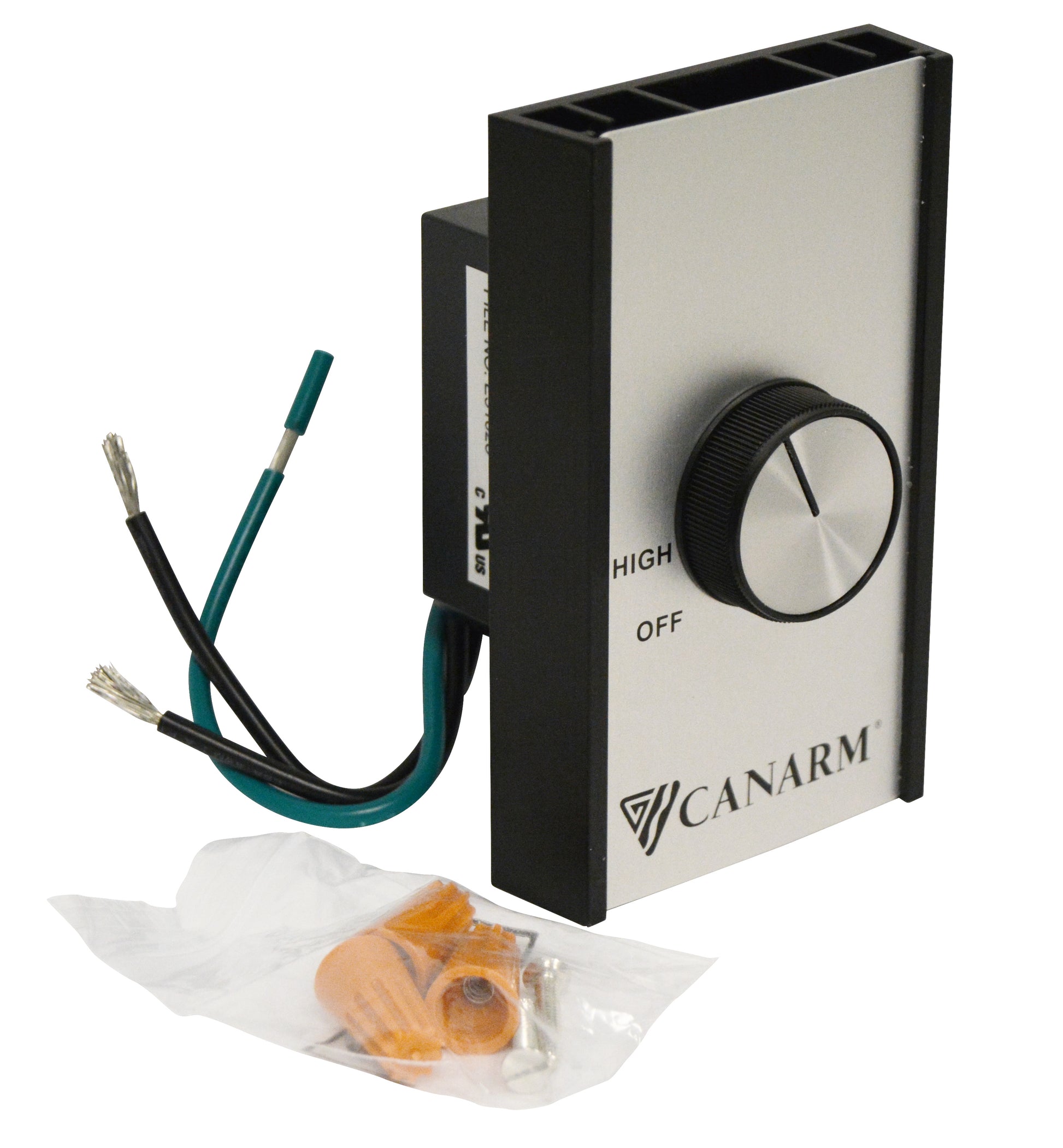

The Canarm MC10 Variable Speed Wall Control (Model MC10, Part CN5101) is a high-capacity wall-mounted fan speed controller designed for dry-location commercial and industrial ventilation applications requiring control of multiple fans from a single point. Engineered for use with 120V AC variable-speed motors, the MC10 can control up to eight fans per control with a combined load of 10 amps, making it ideal for large ventilation zones or multi-fan installations. Intended for use with Canarm variable-speed equipment—including SD standard exhaust fans, AX, DFRC, and AXC fans—this control provides smooth, adjustable airflow while supporting efficient system operation. The MC10 mounts to a standard 3" x 5" wall switch box and includes a minimum speed adjustment screw to fine-tune low-speed performance and prevent motor stall. For use with variable-speed motors only.

Détails

Largeur : 3 1/4 po

Hauteur : 3 po

Longueur : 5 1/2 po

Fini : Argent
