Luminaire 4 Fans Per Control

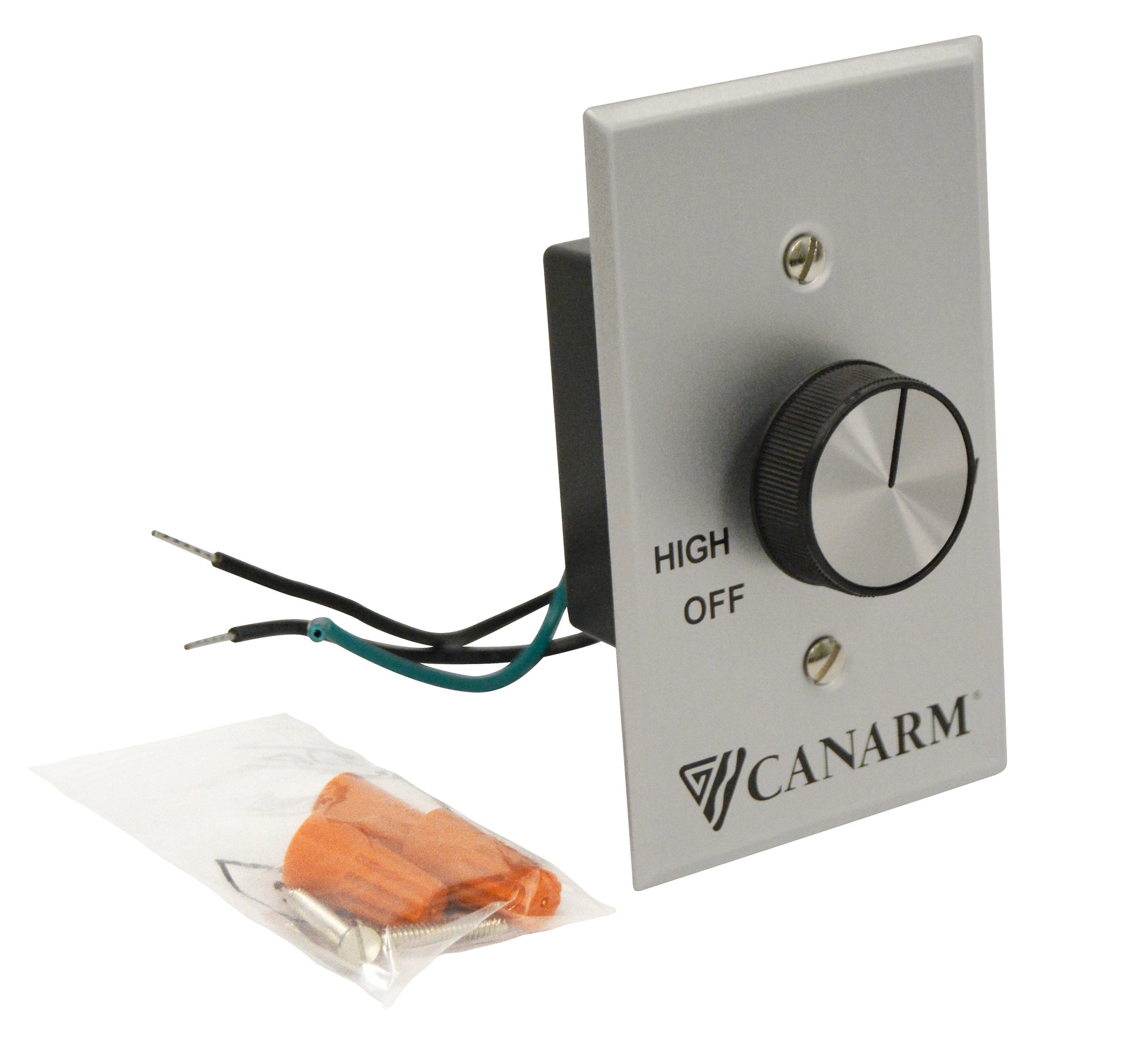

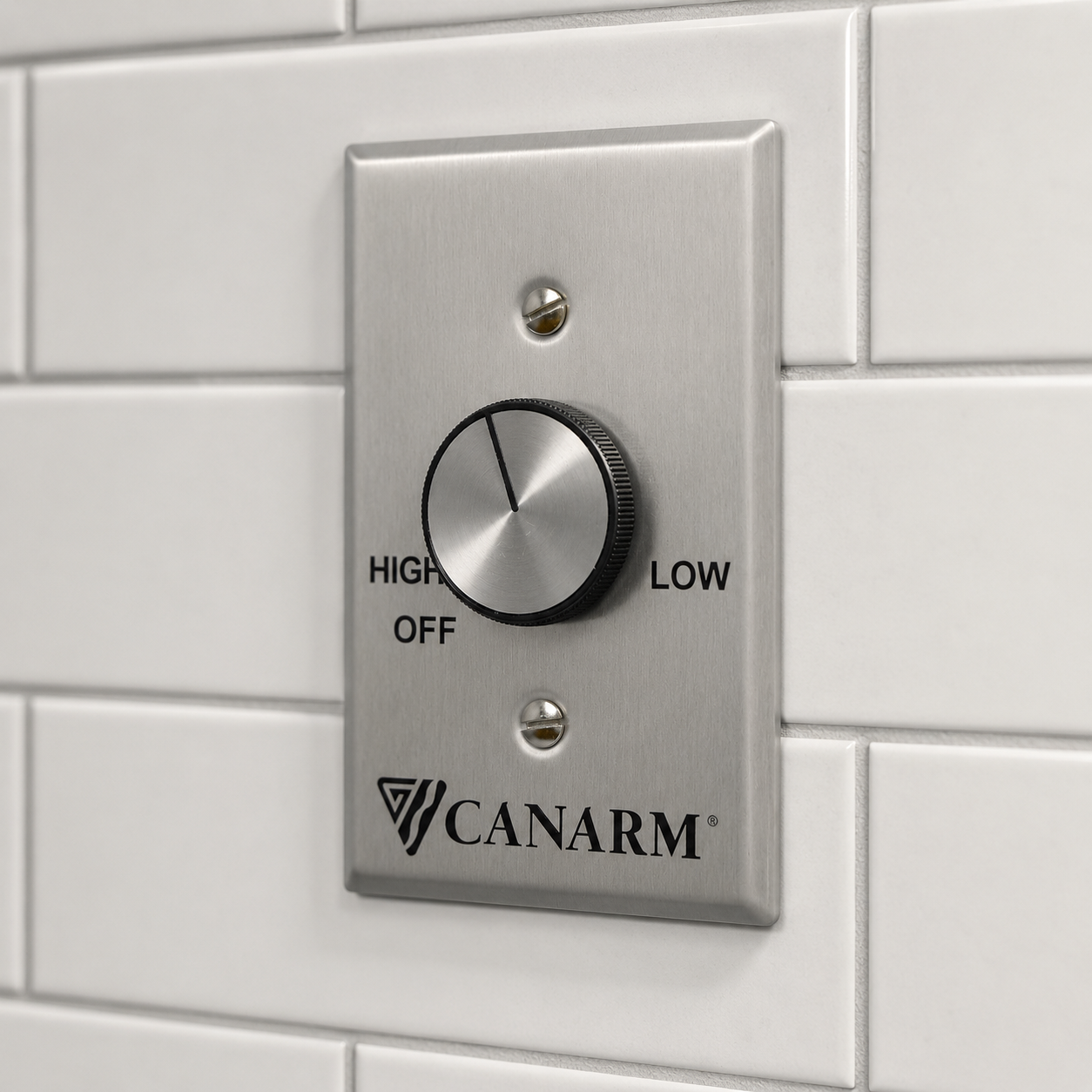

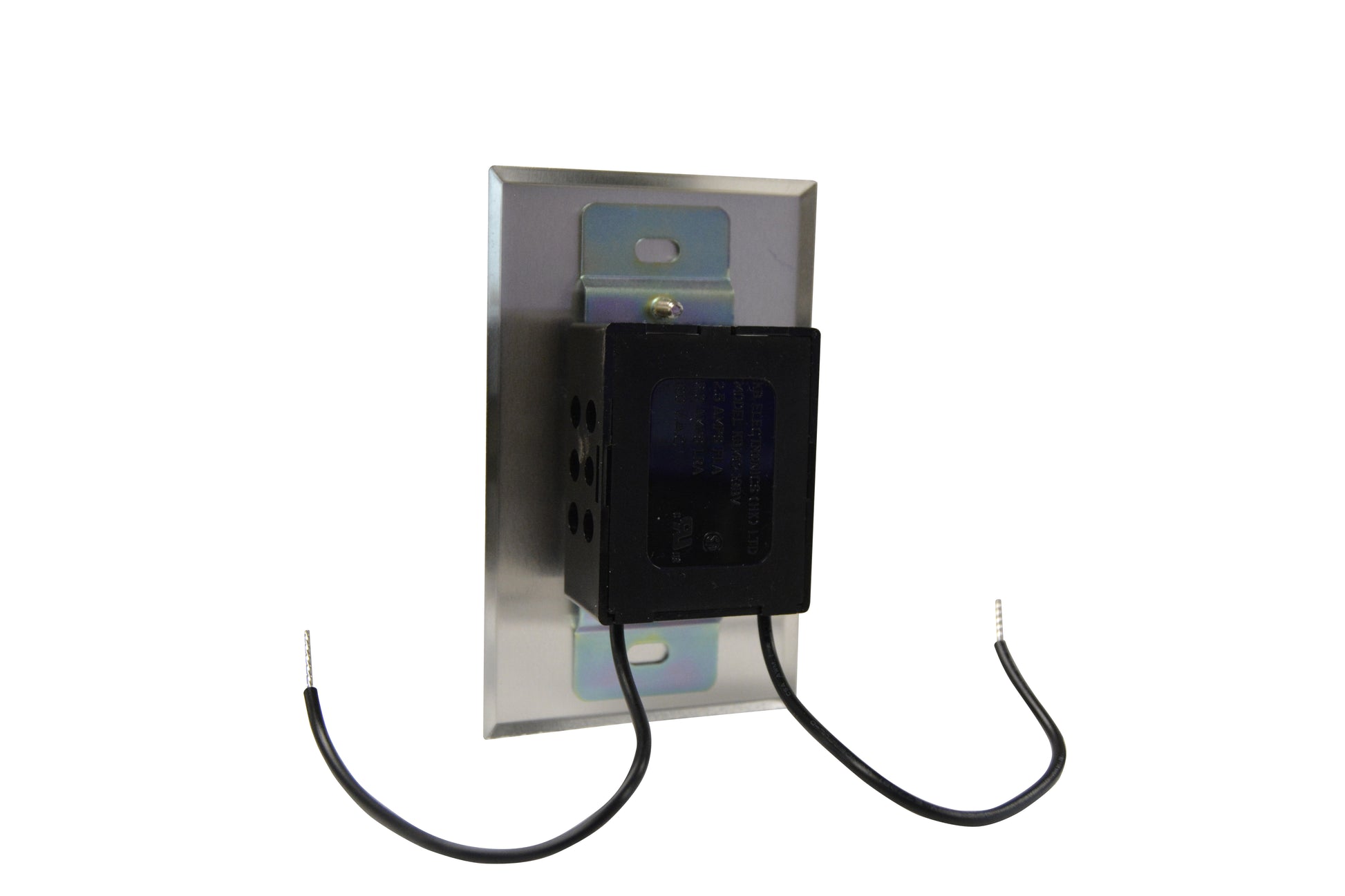

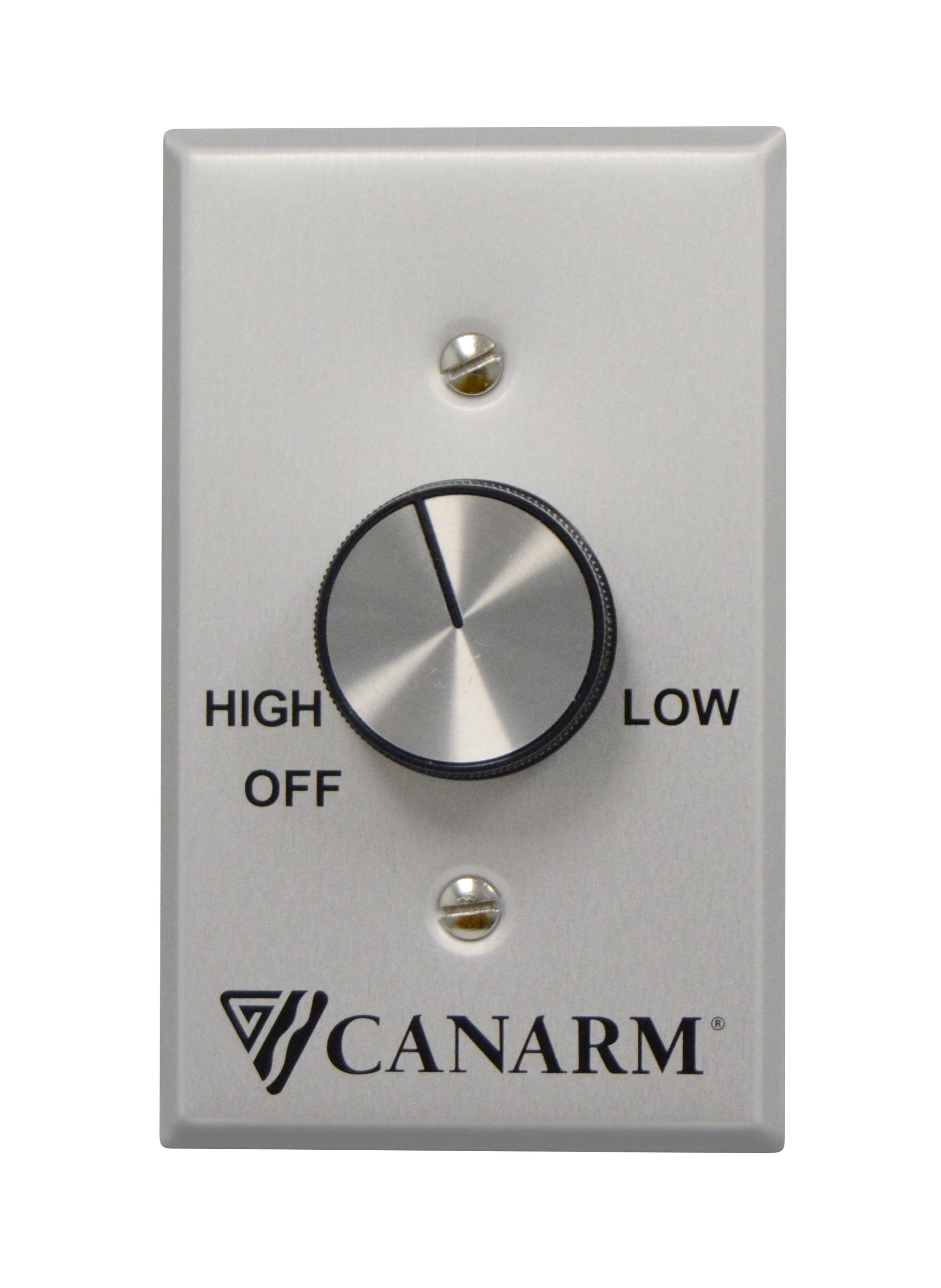

The Canarm MC5 Variable Speed Wall Control (Model MC5, Part CN5061) is a heavy-duty wall-mounted fan speed controller designed for precise airflow control in dry-location ventilation applications. Built for use with 120V AC variable-speed motors, the MC5 offers increased capacity, allowing control of up to four fans per control with a combined load of 5 amps. It is specifically intended for use with Canarm variable-speed equipment, including SD standard exhaust fans, AX, DFRC, and AXC fans, and should only be used with motors designed for variable speed operation. The MC5 mounts to a standard 3" x 5" wall switch box and includes a minimum speed adjustment screw to fine-tune low-speed performance and prevent motor stall, making it a reliable solution for larger or multi-fan installations.

Détails

Largeur : 1 3/4 po

Hauteur : 1 5/8 po

Longueur : 4 1/8 po

Fini : Argent
