Luminaire 12 Amp

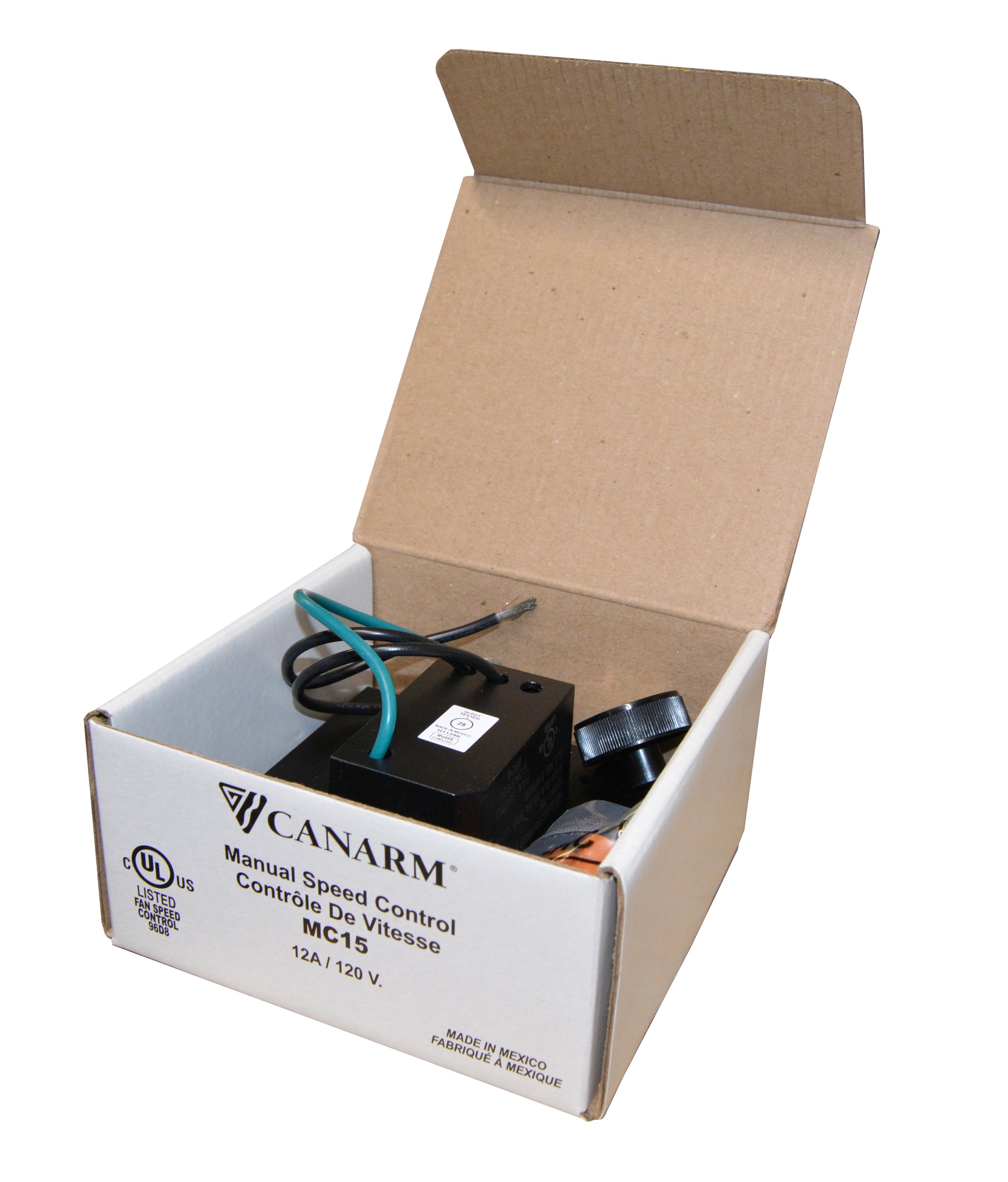

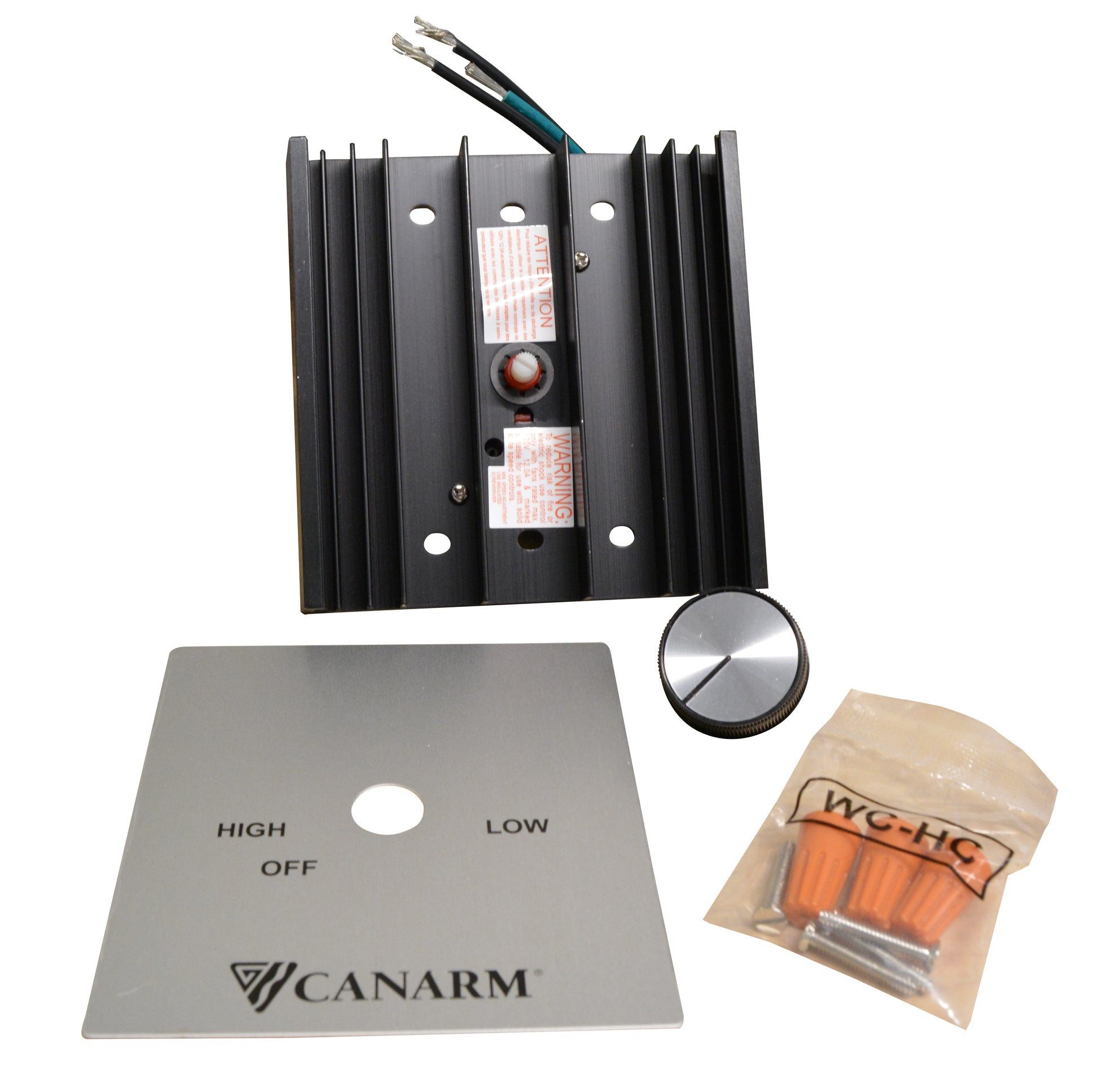

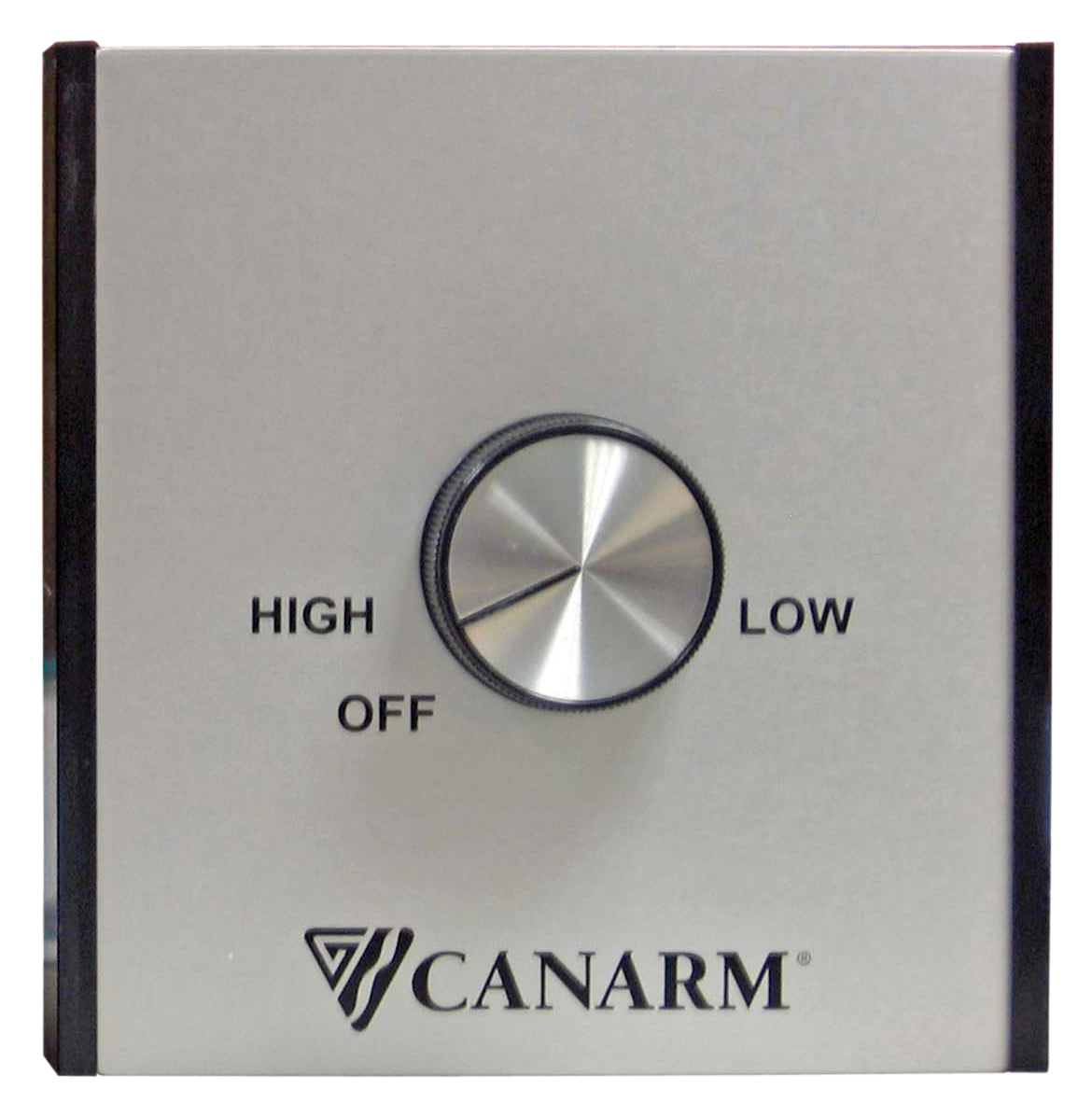

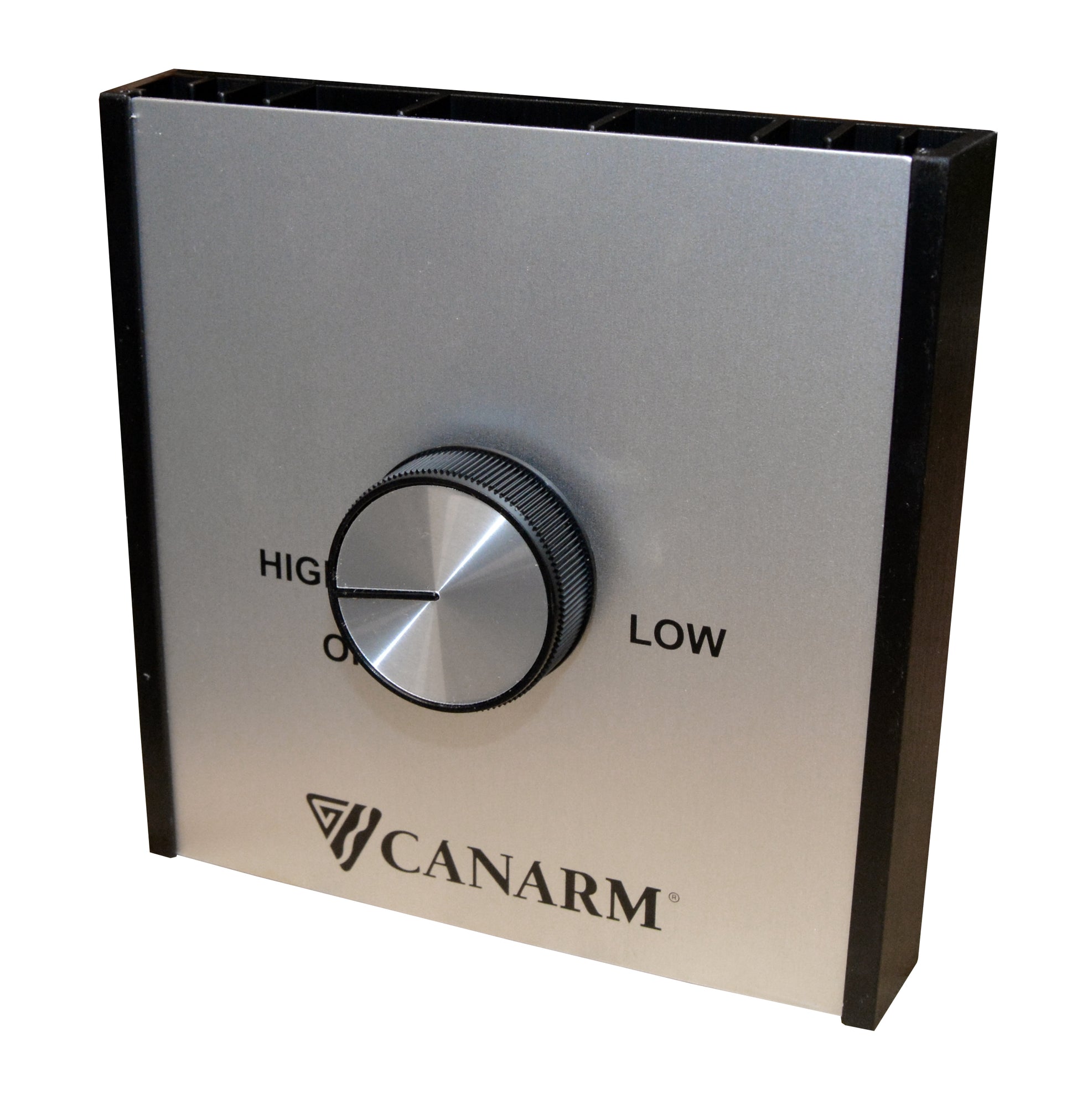

The Canarm MC15 Variable Speed Wall Control (Model MC15, Part CN5151) is a high-capacity wall-mounted fan speed controller designed for dry-location commercial and industrial ventilation applications that require control of multiple fans from a single control point. Engineered for use with 120V AC variable-speed motors, the MC15 supports up to ten fans per control with a combined load of 12 amps, making it well suited for large ventilation zones and high-demand installations. Intended for use with Canarm variable-speed equipment—including SD standard exhaust fans, AX, DFRC, and AXC fans—this control provides smooth, reliable airflow adjustment while supporting efficient system operation. The MC15 mounts to a standard 3" x 5" wall switch box and includes a minimum speed adjustment screw to fine-tune low-speed performance and help prevent motor stall. For use with variable-speed motors only.

Détails

Largeur : 5 po

Hauteur : 3 po

Fini : Argent
